Neodymium Magnet Alloy (Neodymium magnet), also known as NdFeB magnet (NdFeB magnet), is a tetragonal crystal formed by neodymium, iron, and boron (Nd2Fe14B). In 1982, Masato Sagawa of Sumitomo Special Metals discovered neodymium magnets. The magnetic energy product (BHmax) of this magnet is greater than that of the samarium cobalt magnet, and it is the material with the largest magnetic energy product in the world at that time.

Features: Neodymium magnet alloy are currently the most commercially available magnets. They are known as the king of magnetism. They have extremely high magnetic properties and their maximum magnetic energy product (BHmax) is more than 10 times higher than that of ferrite. Its own machinability is also quite good. The working temperature can reach up to 200 degrees Celsius. Moreover, its texture is hard, its performance is stable, and it has a good cost performance, so its application is extremely wide. But because of its strong chemical activity, it must be treated with a surface coating. (Such as Zn, Ni plating, electrophoresis, passivation, etc.).

Application:

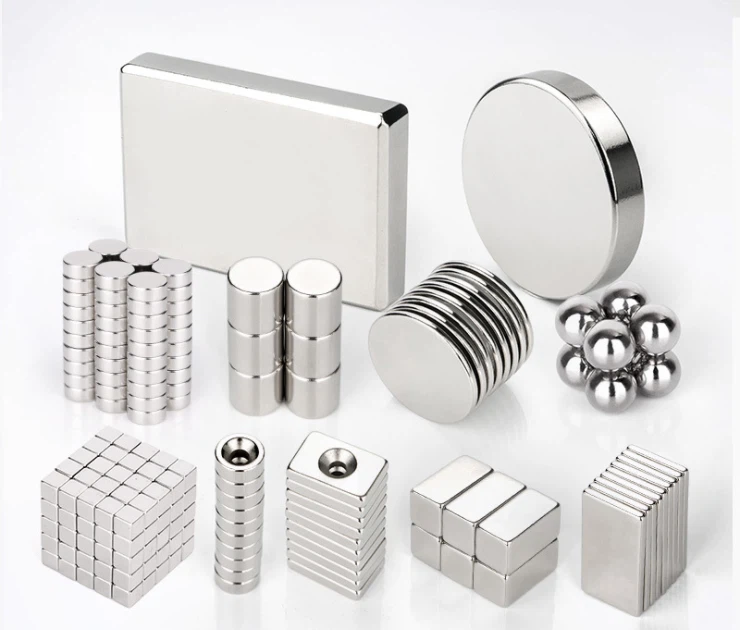

a) Application of neodymium magnet alloy in electronic products - Nowadays, neodymium magnets are developing rapidly and widely used. It is possible to replace traditional pure iron magnets, alnico and samarium cobalt magnets in many fields such as electric motors, instruments and meters, automobile industry, petrochemical industry and magnetic healthcare products. Can produce various shapes: such as disc magnets, ring magnets, rectangular magnets, arc magnets and other shapes of magnets. Neodymium magnets are found in everyday electronic products, such as hard drives, mobile phones, earphones, etc.

b) Neodymium magnets for professional audio - Neodymium magnet alloy play an increasingly important role in the field of professional audio. Due to the small size and light weight of the neodymium magnet, the magnetic flux is large. Therefore, it is very suitable for sound reinforcement of professional performance stages and large stadiums. Among its many professional audio brands, TM brand professional audio has developed a variety of high-quality neodymium magnetic units through a large number of experiments, and upgraded the traditional line array audio unit to develop LA-102F, which has high power and compact structure. , Light weight neodymium magnetic unit line array performance speaker.

Typical Magnetic Performance for Sintered NdFeB magnet

Grade	Remanence		Coercive Force		Intrinsic Coercive		Max Energy		Max. Working Temp.
	Br		Hcb		Hcj		(BH)max
	T	KGs	KA/m	KOe	KA/m	KOe	KJ/cm³	MGOe
N35	1.18-1.25	11.8-12.5	≥876	≥11.0	≥955	≥12	263-302	33-38	80 ℃
N38	1.23-1.30	12.3-13.0	≥876	≥11.0	≥955	≥12	286-326	36-41	80 ℃
N40	1.26-1.32	12.6-13.2	≥876	≥11.0	≥955	≥12	302-334	38-42	80 ℃
N42	1.30-1.35	13.0-13.5	≥860	≥10.8	≥955	≥12	318-350	40-44	80 ℃
N45	1.32-1.38	13.2-13.8	≥860	≥10.8	≥955	≥12	334-366	42-46	80 ℃
N48	1.37-1.43	13.7-14.3	≥836	≥10.5	≥875	≥11	358-390	45-49	80 ℃
N50	1.39-1.46	13.9-14.6	≥836	≥10.5	≥875	≥11	374-406	47-51	80 ℃
N52	1.42-1.48	14.2-14.8	≥836	≥10.5	≥875	≥11	390-422	49-53	80 ℃
N54	1.45-1.51	14.5-15.1	≥836	≥10.5	≥875	≥11	406-438	51-55	80 ℃
N35M	1.18-1.25	11.8-12.5	≥876	≥10.5	≥1114	≥14	263-302	33-38	100 ℃
N38M	1.23-1.30	12.3-13.0	≥916	≥11.5	≥1114	≥14	287-326	36-41	100 ℃
N40M	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1114	≥14	302-342	38-43	100 ℃
N42M	1.30-1.35	13.0-13.5	≥955	≥12.0	≥1114	≥14	318-358	40-45	100 ℃
N45M	1.32-1.38	13.2-13.8	≥971	≥12.2	≥1114	≥14	334-374	42-47	100 ℃
N48M	1.37-1.43	13.7-14.3	≥995	≥12.5	≥1114	≥14	358-398	45-50	100 ℃
N50M	1.39-1.46	13.9-14.6	≥995	≥12.5	≥1035	≥13	374-414	47-52	100 ℃
N52M	1.42-1.48	14.2-14.8	≥995	≥12.5	≥1035	≥13	390-422	49-53	100 ℃
N54M	1.45-15.0	14.5-15.0	≥995	≥12.5	≥1035	≥13	406-438	51-55	100 ℃
N33H	1.14-1.17	11.4-11.7	≥836	≥10.5	≥1353	≥17	247-263	31-33	120 ℃
N35H	1.18-1.25	11.8-12.5	≥876	≥11.0	≥1353	≥17	263-302	33-38	120 ℃
N38H	1.23-1.30	12.3-13.0	≥916	≥11.5	≥1353	≥17	287-326	36-41	120 ℃
N40H	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1353	≥17	302-342	38-43	120 ℃
N44H	1.30-1.37	13.0-13.7	≥963	≥12.1	≥1273	≥16	326-366	41-46	120 ℃
N46H	1.34-1.40	13.4-14.0	≥995	≥12.5	≥1273	≥16	342-382	43-48	120 ℃
N48H	1.36-1.42	13.6-14.2	≥1011	≥12.7	≥1273	≥16	358-398	45-50	120 ℃
N50H	1.38-1.44	13.8-14.4	≥1026	≥12.9	≥1273	≥16	374-406	47-51	120 ℃
N52H	1.40-1.46	14.0-14.6	≥1035	≥13.0	≥1273	≥16	382-422	48-53	120 ℃
N33SH	1.14-1.17	11.4-11.7	≥836	≥10.5	≥1592	≥20	247-263	31-33	150 ℃
N35SH	1.18-1.25	11.8-12.5	≥883	≥11.1	≥1592	≥20	263-302	33-38	150 ℃
N38SH	1.23-1.30	12.3-13.0	≥923	≥11.6	≥1592	≥20	287-326	36-41	150 ℃
N40SH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥1592	≥20	302-342	38-43	150 ℃
N42SH	1.28-1.34	12.8-13.4	≥955	≥12.0	≥1512	≥19	310-350	39-44	150 ℃
N45SH	1.32-1.38	13.2-13.8	≥987	≥12.4	≥1512	≥19	334-374	42-47	150 ℃
N48SH	1.36-1.42	13.6-14.2	≥1011	≥12.7	≥1512	≥19	358-390	45-49	150 ℃
N50SH	1.38-1.44	13.8-14.4	≥1035	≥13.0	≥1512	≥19	372-406	47-51	150 ℃
N28UH	1.07-1.09	10.7-10.9	≥780	≥9.80	≥1990	≥25	211-225	26-28	180 ℃
N30UH	1.09-1.17	10.9-11.7	≥820	≥10.3	≥1990	≥25	223-263	28-33	180 ℃
N33UH	1.14-1.22	11.4-12.2	≥859	≥10.8	≥1990	≥25	247-287	31-36	180 ℃
N35UH	1.18-1.25	11.8-12.5	≥891	≥11.2	≥1990	≥25	263-302	33-38	180 ℃
N38UH	1.22-1.28	12.2-12.8	≥923	≥11.6	≥1990	≥25	287-326	36-41	180 ℃
N40UH	1.26-1.32	12.6-13.2	≥955	≥12.0	≥1990	≥25	302-334	38-42	180 ℃
N42UH	1.29-1.35	12.9-13.5	≥955	≥12.0	≥1990	≥25	318-350	40-44	180 ℃
N45UH	1.32-1.38	13.2-13.8	≥987	≥12.4	≥1990	≥25	334-374	42-47	180 ℃
N48UH	1.36-1.41	13.6-14.1	≥1011	≥12.7	≥1911	≥24	358-398	45-50	180 ℃
N28EH	1.07-1.09	10.7-10.9	≥780	≥9.80	≥2388	≥30	211-227	26-28	200 ℃
N30EH	1.09-11.7	10.9-11.7	≥820	≥10.3	≥2388	≥30	223-263	28-33	200 ℃
N33EH	1.14-1.20	11.4-12.0	≥859	≥10.8	≥2388	≥30	247-287	31-36	200 ℃
N35EH	1.17-1.23	11.7-12.3	≥883	≥11.1	≥2388	≥30	263-295	33-37	200 ℃
N38EH	1.22-1.28	12.2-12.8	≥923	≥11.6	≥2388	≥30	287-318	36-40	200 ℃
N40EH	1.26-1.32	12.6-13.2	≥939	≥11.8	≥2388	≥30	302-334	38-42	200 ℃
N44EH	1.30-1.35	13.0-13.5	≥979	≥12.3	≥2308	≥29	326-366	41-46	200 ℃
N28AH	1.05-1.13	10.5-11.3	≥780	≥10.0	≥2786	≥35	207-247	26-31	220 ℃
N30AH	1.09-1.17	10.9-11.7	≥820	≥10.3	≥2786	≥35	223-263	28-33	220 ℃
N35AH	1.17-1.24	11.7-12.4	≥876	≥11.0	≥2786	≥35	263-295	33-37	220 ℃

Surface Treatment

Zinc coating:

Good corrosion resistance

Good salt spray resistance

Nickel coating:

Excellent corrosion resistance

Superior resistance against humidity and heat

Passivation:

Surface clean

Certain protection for uncoated magnets

Epoxy coating:

Excellent corrosion resistance

Superior salt spray resistance

Good resistance against humidity and heat

Name	White Zinc	Color Zinc	Nickel	Electroless Nickel	NiCuNi	NiSn	Epoxy	Phosphating	NiAu
Coating Thickness (μm)	8-15	10-15	20-30	20-30	15-30	20-30	10-30	1-3	10-20
Color	Blue & white	Multicolor	Silver	Silver	Silver	Silver	Black	Black	Gold
PCT	3	3	1	1	2	2	2	3	2
Humidity Test	3	3	1	1	1	1	1	2	2
Salt Spray Test	3	2	3	1	2	2	1	3	2
Collision Test	2	2	1	1	1	1	1	3	1
