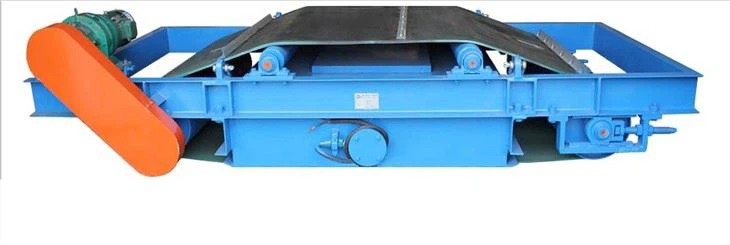

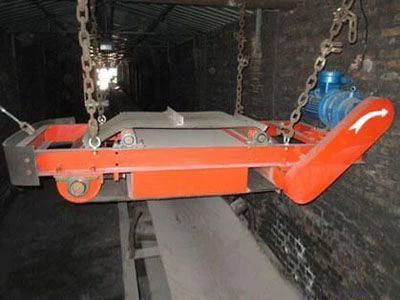

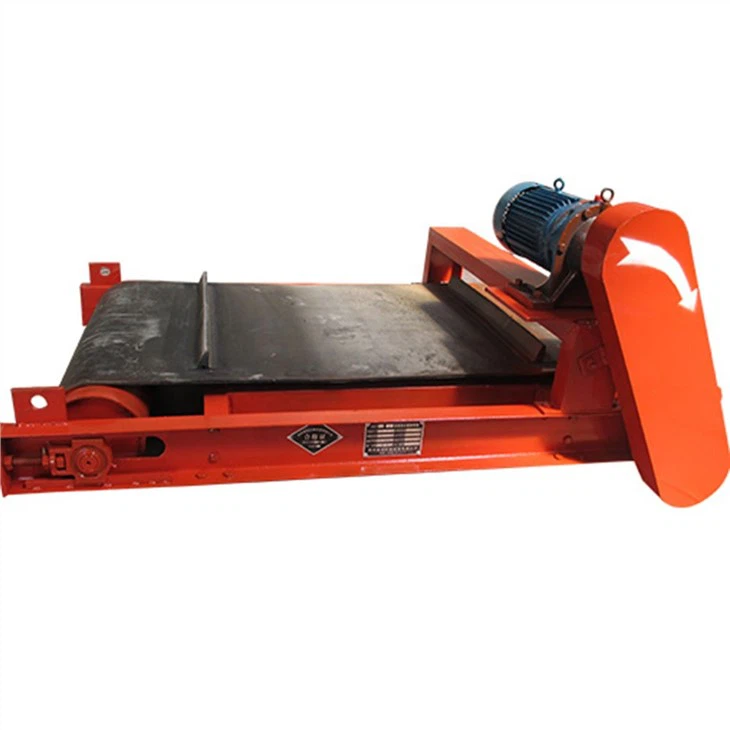

Suspended Iron Remover is to achieve the effect of iron removal in the effective range by using the characteristics of magnet adsorption of iron products. Suspended Iron Remover produced by YanHe Company is composed of NdFeB permanent magnet core, discarding iron belt, decelerating motor, frame, roller and other parts. It is used with various conveyors to automatically remove ferromagnetic materials from non-magnetic materials, and is used for occasions where there is more iron in materials.

Suspended Iron Remover is suitable for coal port, large thermal power plant, coal mine, mine, building materials and other places where the iron removal requirements are particularly high, and the weight of the equipment is light, easy to hang and install, easy to move and replace to another occasion, in addition, the suspension iron removal structure is simple, convenient maintenance, simple parts, reduce the maintenance cost. It can work normally in dust, damp, salt spray corrosion and other harsh environment. Oil cooling has been commonly used in the international electromagnetic iron removal cooling method. It adopts the production process of evaporative cooling iron, which can effectively prevent oil leakage, and the product quality is stable, mature and reliable. When the granular material after the permanent magnet dump iron is below, mixed in the material of ferromagnetic impurities about 0.1-0.36 kg is sucked up, due to the continuous operation of the belt in addition to iron, when the adsorption on the above ferromagnetic material through the magnetic area, it is the belt on the iron scraping out, thrown into the set iron box, so as to achieve the purpose of continuous automatic iron removal.

Application

Suspended Iron Remover is suitable for belt conveyor, vibrating conveyor, electromagnetic vibrating feeder, and iron removal in non-magnetic materials on the chute. Suspension Self-unloading Permanent Magnet Iron Remover is composed of high-performance permanent magnet core, iron-dissipating belt, geared motor, frame, roller, etc., and is used with various conveyors. The suspended self-unloading permanent magnet separator is used to automatically remove 0.1 to 35 kilograms of ferromagnetic material from non-magnetic materials.The internal magnetic circuit adopts computer simulation design and perfect double magnetic pole structure to ensure the long-term operation of the whole machine in a harsh environment without trouble.

Advantages

• The Suspended Iron Remover system is composed of a high-coercive force and a high-remanence permanent

magnet NdFeB. The magnetic field is strong and the suction force is large.

• Easy to install, easy to use, reliable and maintenance free.

• All technical indicators are in line with JB/T8711-2006

• Automatic iron discharging and manual iron discharging are available.
