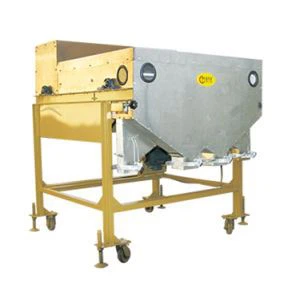

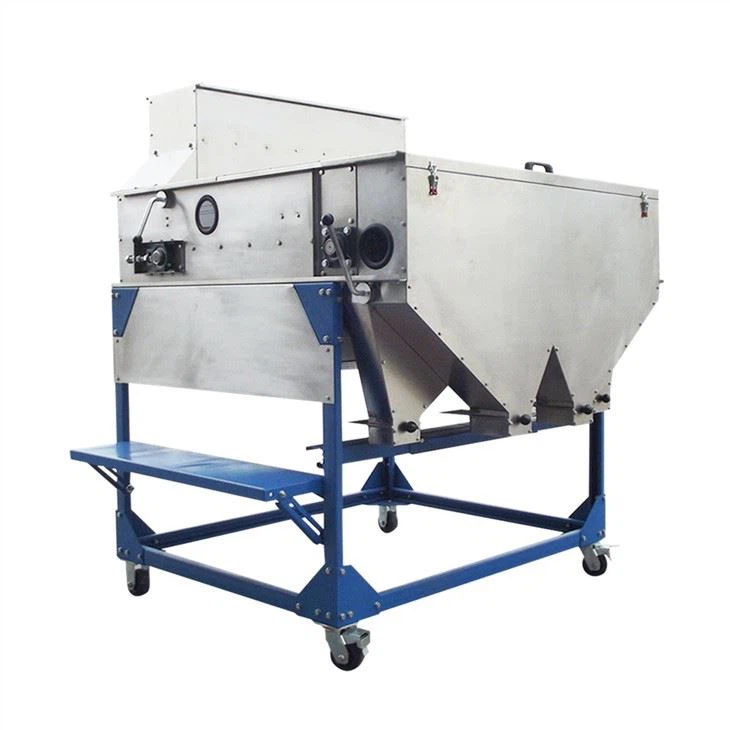

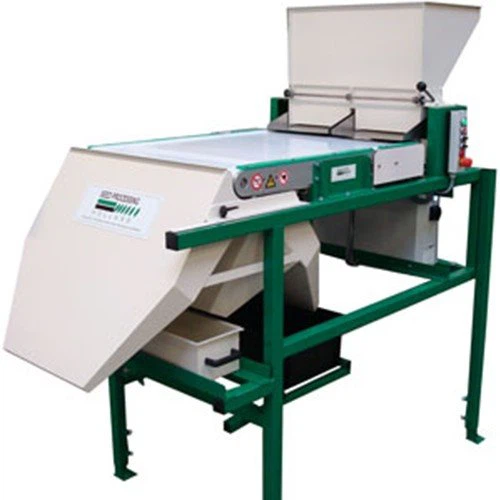

Magnetic Seeds Separator is a magnetic separation device used for seed cleaning. It comprises a drum, a barrel brush, a spiral push pipe, a hopper, a spray pipe and a iron powder conveying pipe. The drum is a magnetic barrel, the brush is a cylinder with a soft brush set on the periphery, the spiral push pipe is provided with a spiral conveyor belt on the inside, the upper left end and the lower right end are provided with an open pipe body, the hopper is a conical table bucket structure, and the spray pipe is a water pipe with a micro nozzle.
The iron powder conveying pipe is a part of Magnetic Seeds Separator. The iron powder conveying pipe is a conveying pipe with a disk controller, the drum is arranged at the lower position, the barrel brush is arranged at the left position below the drum and is closely connected with the drum, the screw push pipe is arranged horizontally at the left position above the drum, and the hopper is arranged at the opening position above the left end of the screw push pipe and is firmly connected with it. The shell form of the screw push pipe below the end of the spray pipe is arranged on the left above the screw push pipe and on the right of the hopper. The shell form of the screw push pipe below the end of the iron powder conveying pipe is arranged on the left and right center above the screw push pipe. The utility model has the following characteristics: the components are complicated, the cleaning and separation effect is good, and it is generally suitable for the grade separation of large wheat seeds.
Charactiristic about Magnetic Seeds Separator
• Stainless steel 304 thin plate body, strictly magnetically sealed, and extremely small magnetic leakage.
• The magnetic field strength of the magnet roller is greater than 17,000 Gauss, indicating a good magnetic effect.
• Wide magnetic surface design, the width of the magnetic selection surface is 130mm to ensure the processing ability and improve the magnetic effect.
• The bulk grain is fed uniformly, which greatly reduces the loss caused by the vibrating feeder.
How does magnetic seeds separator work?
Magnetic seed separator separates damaged seeds from undamaged ones. The seeds should first be mixed with whetted iron powder. The seeds should then be dosed onto the unit’s conveyor belt. A magnetic roll at the end of the belt provides a robust and constant force that attracts all the seeds with iron powder, moving them to the bottom of the conveyor.
At the bottom, the magnet will release the damaged seeds and will be separated from the iron powder, enabling operators to re-use the powder. On the other hand, the good seeds will exit from the front of the machine, where you can collect them in a box or container.
