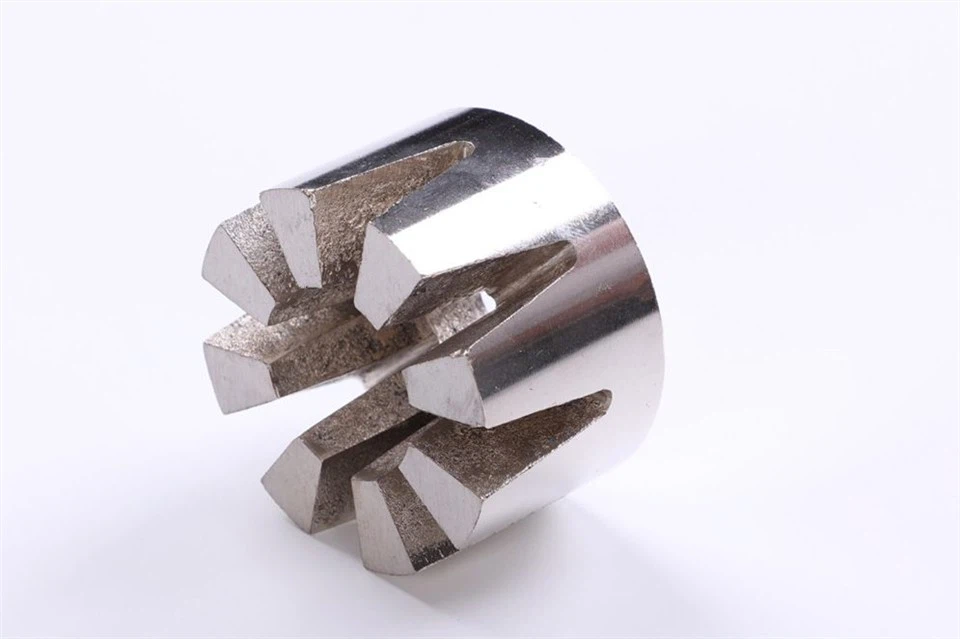

Aluminum Nickel Cobalt Magnets are divided into cast Alnico magnets and sintered Alnico magnets according to different production processes. The shapes of the products are mostly round and square. The casting process can be processed into different sizes and shapes; compared with the casting process, the sintered product is limited to a smaller size, and the dimensional tolerance of the formed blank is better than that of the cast product, and the magnetic properties are better than that of the cast product The magnetic properties are slightly lower, but the machinability is better. Among permanent magnet materials, cast Aluminum Nickel Cobalt Magnets have the lowest reversible temperature coefficient and can work at temperatures up to 550 degrees Celsius.

1. Manufacturing process of sintered alnico magnets
2. Advantages of sintered alnico magnets 0824-1
A. Sintered AlNiCo magnets can be used up to 450-500 degrees C, and it has small magnetic output variation and temperature variation between permanent magnet series.
B. Although the magnetic properties of sintered AlNiCo magnets are slightly lower than those of cast AlNiCo magnets, their mechanical properties are much better.
C. The dimensions and dimensional tolerances of sintered alnico are relatively smaller than cast magnets and do not require much further processing.
D. Suitable for mass production.
E. Excellent anti-corrosion ability.

3. Application of Aluminum Nickel Cobalt Magnets
Alnico permanent magnet materials are mainly composed of aluminum, nickel, cobalt, iron, copper, titanium and other materials.
Newly developed application fields of Alnico permanent magnet materials: Hall components of temperature sensors and electronic sensors for automobiles;
Traditional applications are: magnetrons, TWT amplifiers, regulators, motors and instruments;
Rare earth permanent magnet materials have replaced Alnico permanent magnet materials in many application fields.

Typical Magnetic Performance for Sintered AlNiCo magnet

Grade	Remanence		Coercive Force		Max Energy		Density	Similar MMPA Standard	Temp. Coeff. of Br	Curie Temp.	Max. Working Temp.
	Br		Hcb		(BH)max		Density		Temp. Coeff. of Br	Curie Temp.	Max. Working Temp.
	mT	Gs	KA/ m	Oe	KJ/m³	MGOe	g/cm³		%/°C	°C	°C
*FLN8	520	5200	40	500	8	1.00	6.7	AlNiCo 3	-0.022	760	450
*FLNG12	700	7000	40	500	12	1.50	7	AlNiCo 2	-0.014	810	450
*FLNG14	570	5700	76	950	14	1.75	7.1	AlNiCo 4	-0.02	850	450
*FLNG18	560	5600	88	1100	18	2.25	7.2	AlNiCo 7	-0.02	850	450
FLNG26	900	9000	56	700	26	3.25	7.2	AlNiCo 6	-0.02	850	450
FLNG28	1050	10500	46	580	28	3.50	7.2	AlNiCo 5	-0.016	850	450
FLNGT31	780	7800	104	1300	31	3.90	7.2	AlNiCo 8	-0.02	850	450
FLNG34	1100	11000	50	630	34	4.30	7.2	AlNiCo 5	-0.016	890	450
FLNGT36	680	6800	135	1700	36	4.50	7.2	AlNiCo 8	-0.011	850	450
FLNGT38	800	8000	123	1550	38	4.75	7.2	AlNiCo 8	-0.02	850	450
FLNGT42	880	8800	122	1530	42	5.25	7.2	AlNiCo 8	-0.02	850	450
FLNGT33J	700	7000	140	1750	33	4.13	7.2	ALNICO8HC	-0.025	850	450

*=Isotropic Other=Anisotropic

Typical Magnetic Performance for Cast AlNiCo

Grade	Remanence		Coercive Force		Max Energy		Density	Similar MMPA Standard	Temperature Coefficient		Curie Temp. °C	Max. Working Temp.
	Br		Hcb		(BH)max		Density		Temperature Coefficient
	mT	Gs	KA/m	Oe	KJ/ m³	MGOe	g/cm³		%/°C Br	%/°C Hcb
*LN9	680	6800	30	380	9.0	1.13	6.9	AlNiCo 3	-0.03	-0.02	810	450
*LN10	600	6000	40	500	10	1.25	6.9	AlNiCo 3	-0.03	-0.02	810	450
*LNG12	720	7200	45	570	12.4	1.55	7	AlNiCo 2	-0.03	-0.02	810	450
*LNG13	700	7000	48	600	12.8	1.6	7	AlNiCo 2	-0.03	-0.02	810	450
LNG37	1200	12000	48	600	37	4.65	7.3	AlNiCo 5	-0.02	0.02	860	525
LNG40	1250	12500	48	600	40	5.0	7.3
LNG44	1250	12500	52	650	44	5.5	7.3
LNG52	1300	13000	56	700	52	6.5	7.3	AlNiCo 5 DG
LNG60	1350	13500	59	740	60	7.5	7.3	AlNiCo 5-7
LNGT28	1100	11000	58	720	28	3.5	7.3	AlNiCo 6	-0.02	0.03	860	525
LNGT36J	700	7000	140	1750	36	4.5	7.3	AlNiCo 8 HC	-0.025	0.02	860	550
*LNGT18	580	5800	100	1250	18	2.25	7.3	AlNiCo 8	-0.025	0.02	860	550
LNGT32	800	8000	100	1250	32	4.0	7.3	AlNiCo 8	-0.025	0.02	860	550
LNGT38	820	8200	110	1380	38	4.75	7.3
LNGT44	880	8800	120	1500	44	5.5	7.3
LNGT60	900	9000	110	1380	60	7.5	7.3
LNGT72	1050	10500	120	1500	72	9	7.3	AlNiCo 9	-0.025	0.02	860	550
LNGT44J	820	8200	144	1800	44	5.5	7.3	AlNiCo 8 HE	-0.025	0.02	860	550

*=Isotropic Other=Anisotropic
